Product Introduction: XPS Embedded Floor Heating Panel
Our XPS Embedded Floor Heating Panel has excellent performance and durability. Key features include:
– Dry installation, no backfill required – The construction process is easy and convenient, saving time and labor costs.

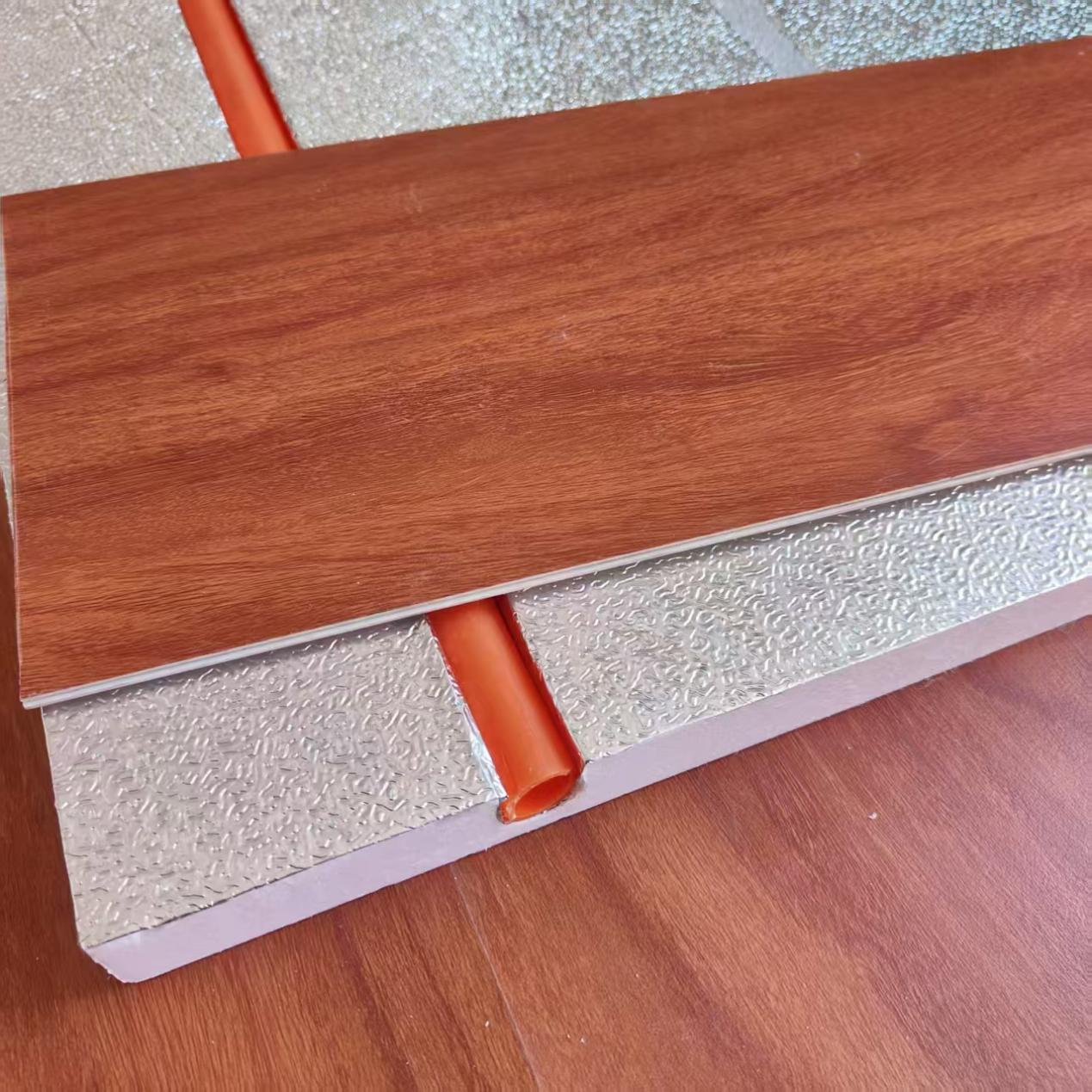

– Embossed pure aluminum thermal conductive layer (0.05-0.1mm) – Ensures excellent thermal conductivity, elegant silver finish.
– High-strength XPS insulation board (25-35mm, customizable) – Provides excellent insulation performance, reduces energy loss and improves efficiency.
– Excellent thermal performance – The aluminum layer maximizes heat transfer efficiency, while the XPS insulation board minimizes heat loss for optimal energy saving.
Note: This embossed aluminum is not corrosion-resistant, and it is recommended to use scene wooden floors or spc floors.
Combining durability, efficiency and aesthetics, this floor heating panel is the ultimate choice to meet the needs of modern buildings.

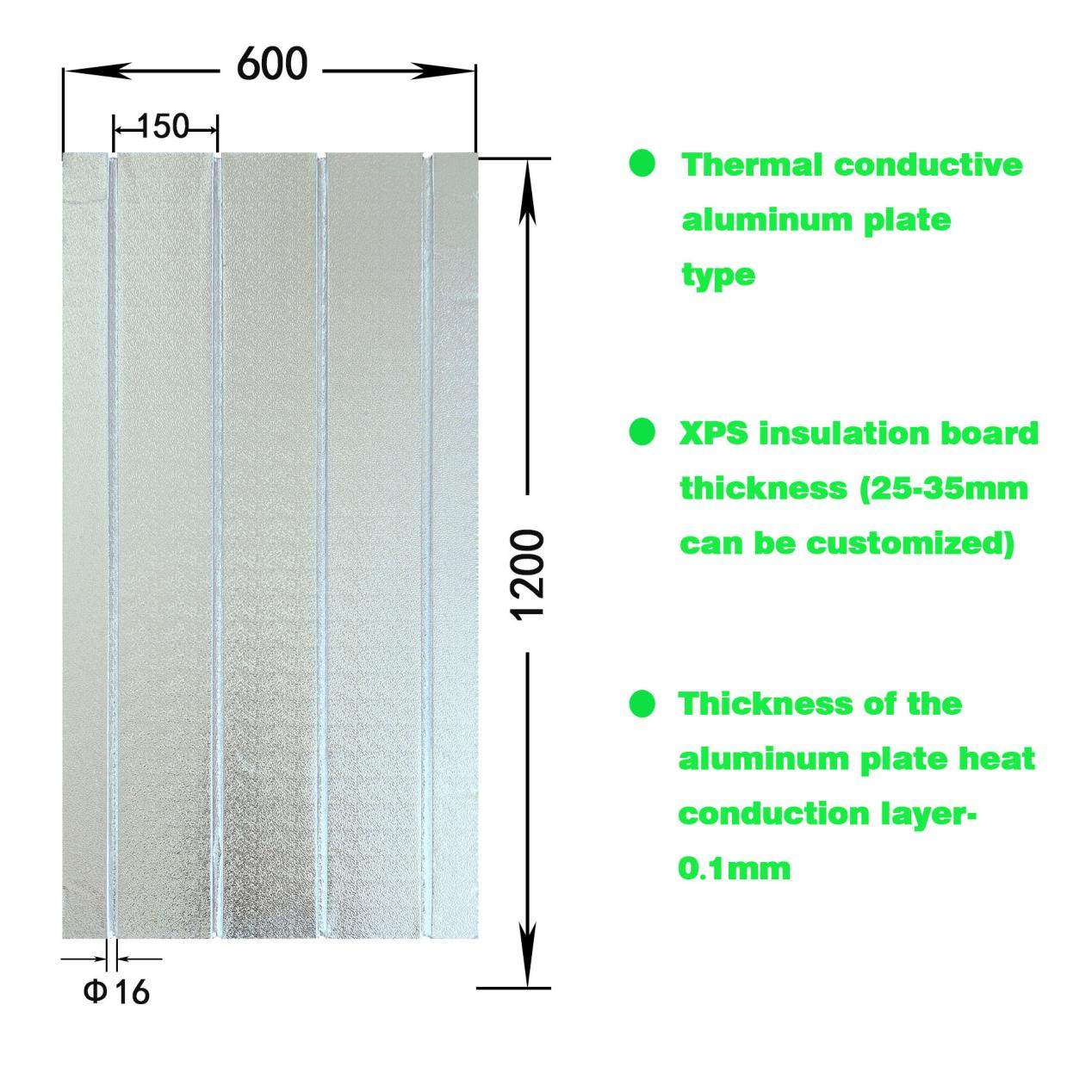

| Specification parameters | |||||
| Model No. | XPS400-25-16 | XPS800-30-16 | XPS400-30-20 | XPS800-30-20 | |
| Pipe φ | 16mm | 16mm | 20mm | 20mm | |
| Product Size | 1200x600x25mm
1200x600x30mm 1200x600x35mm |
1200x600x25mm
1200x600x30mm 1200x600x35mm |
1200x600x25mm
1200x600x30mm |
1200x600x25mm
1200x600x30mm |
|
| Pipe Distance | 150/200mm | 150/200mm | 200mm | 200mm | |
| Aluminum Foil | 0.05-0.1mm | 0.05-0.1mm | 0.05-0.1mm | 0.05-0.1mm | |
| Material | XPS+aluminum plate | XPS+aluminum plate | XPS+aluminum plate | XPS+aluminum plate | |
| Compressive Strength | 400Kpa | 800Kpa | 400Kpa | 800Kpa | |
| Thermal Conductivity | 0.034 W/(m.K) | 0.034 W/(m.K) | 0.034 W/(m.K) | 0.034 W/(m.K) | |
| Color of XPS | Blue/White | Blue/White | Blue/White | Blue/White | |
| Project Solution Capability | 3D model design,Drawing design | 3D model design,Drawing design | 3D model design,Drawing design | 3D model design,Drawing design | |
| After-sale Service | Online technical support | Online technical support | Online technical support | Online technical support | |
| *All products can accept customized shapes* | |||||
Rongqi Building Materials Co., Ltd.
Innovative XPS Heating Solutions for a Warmer Future
Established in 2015, Rongqi Building Materials Co., Ltd. specializes in the R&D and production of high-performance XPS underfloor heating materials. With nearly a decade of expertise, we are committed to delivering energy-efficient, eco-friendly, and durable heating solutions for residential, commercial, and industrial applications worldwide.
Our Core Products
XPS Dry Underfloor Heating Modules
✔ Fast installation, saving time and labor costs
✔ Excellent compressive strength for long-term durability
✔ 30%+ higher energy efficiency than traditional systems
XPS Insulation Boards
✔ High compressive resistance for construction insulation
✔ Low thermal conductivity for superior heat retention
✔ Moisture-proof and mold-resistant for extended lifespan
✨ XPS Aluminum Foil Boards
✔ Reflective surface enhances heat distribution
✔ Ensures even warmth without hot spots
✔ Compatible with various heating systems
⚡ XPS Graphene-Enhanced Dry Heating Panels
✔ Graphene technology boosts thermal conductivity by 50%
✔ Rapid heating with maximum energy savings
✔ Ultra-thin design preserves ceiling height
