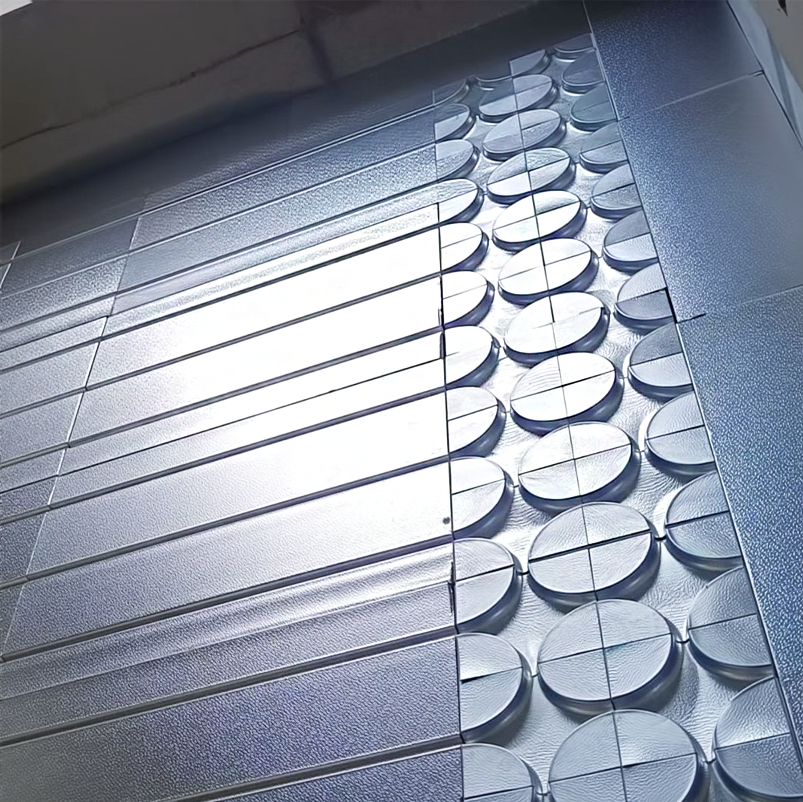

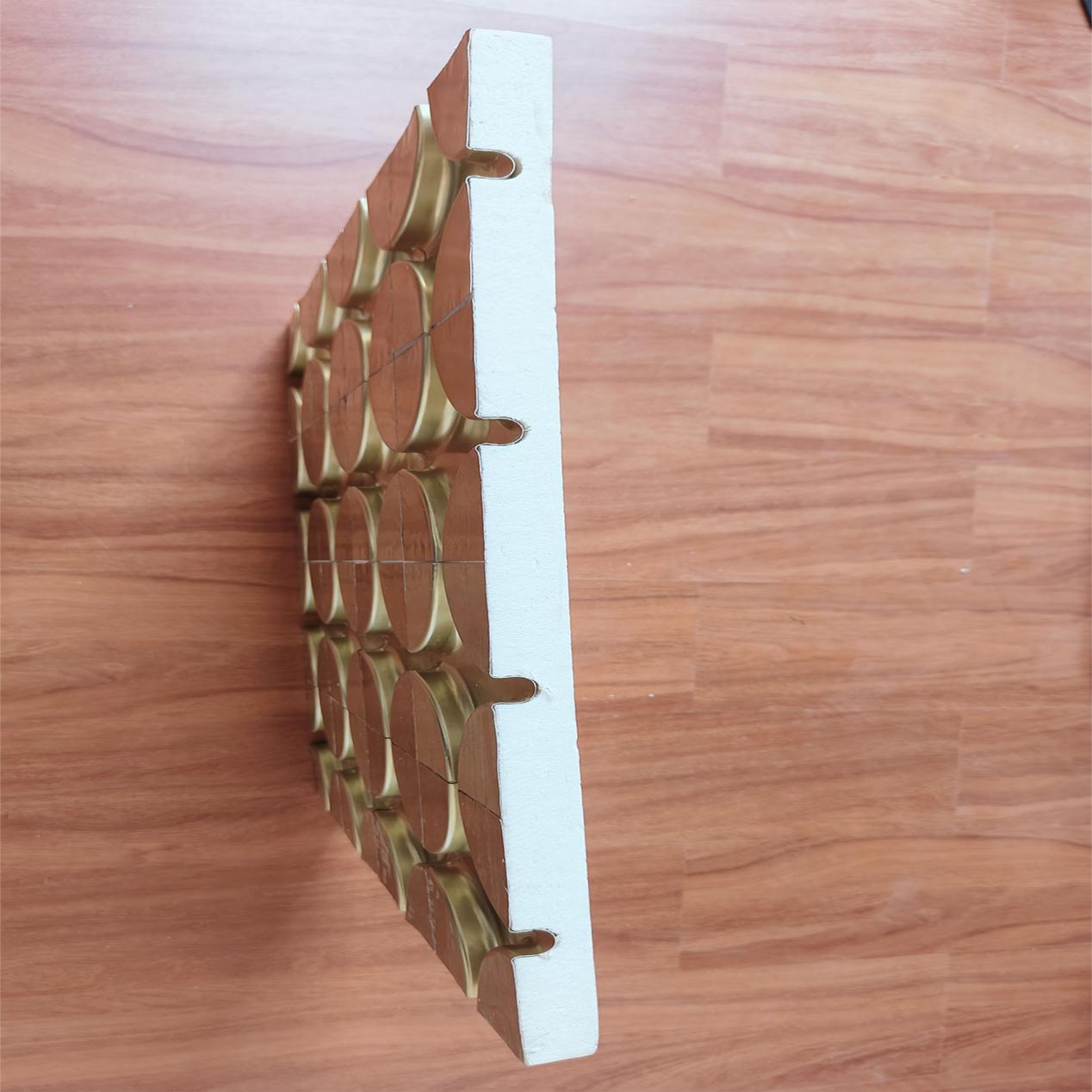

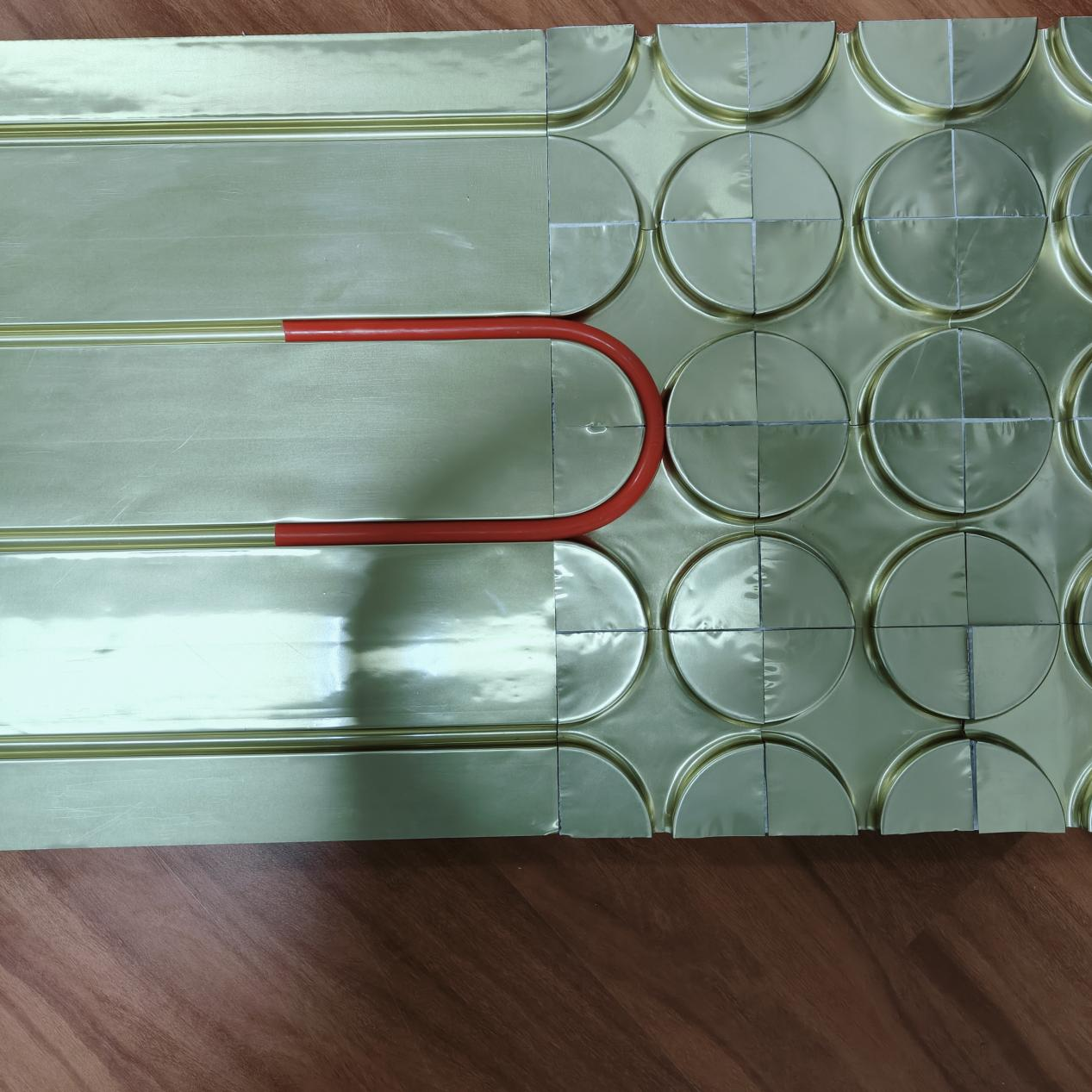

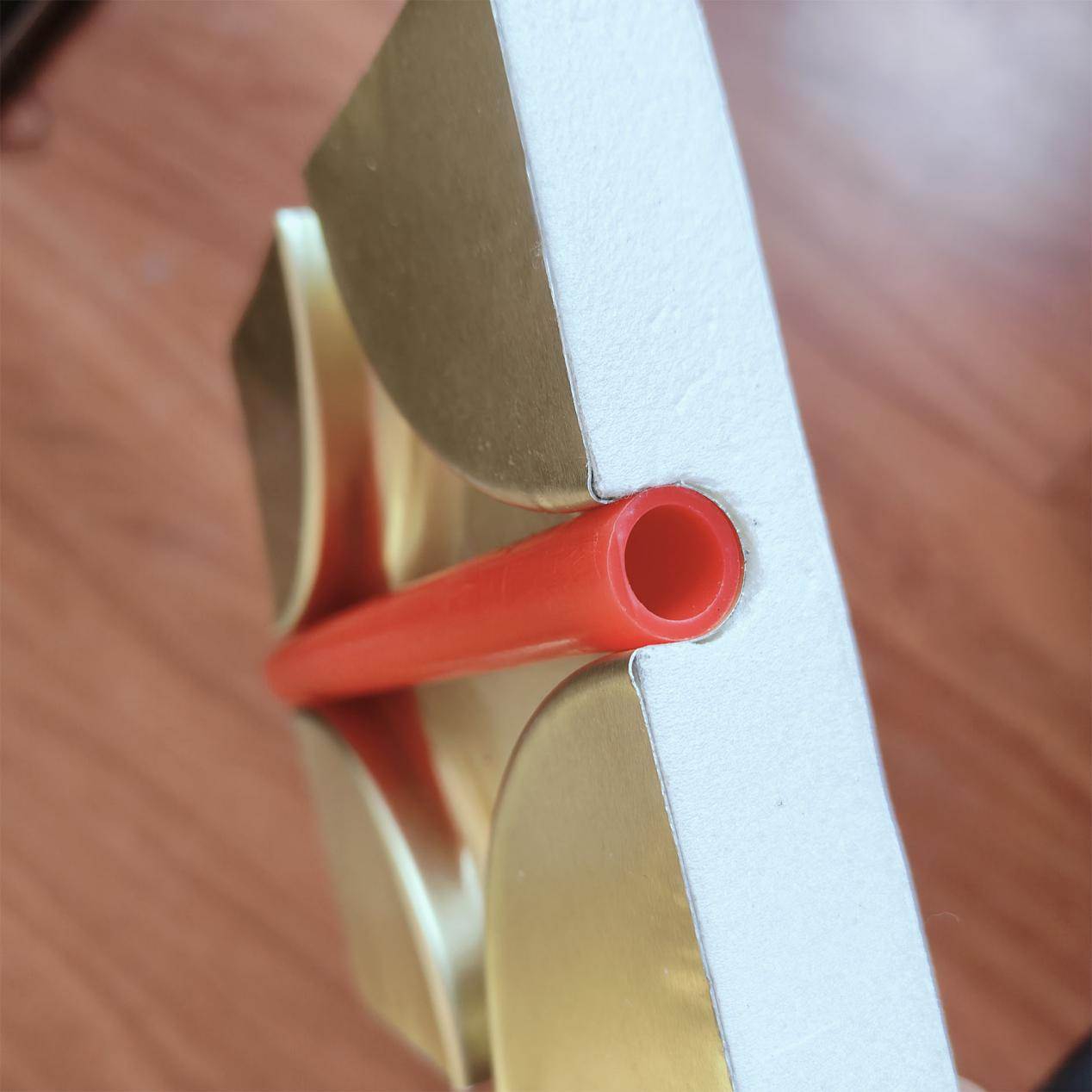

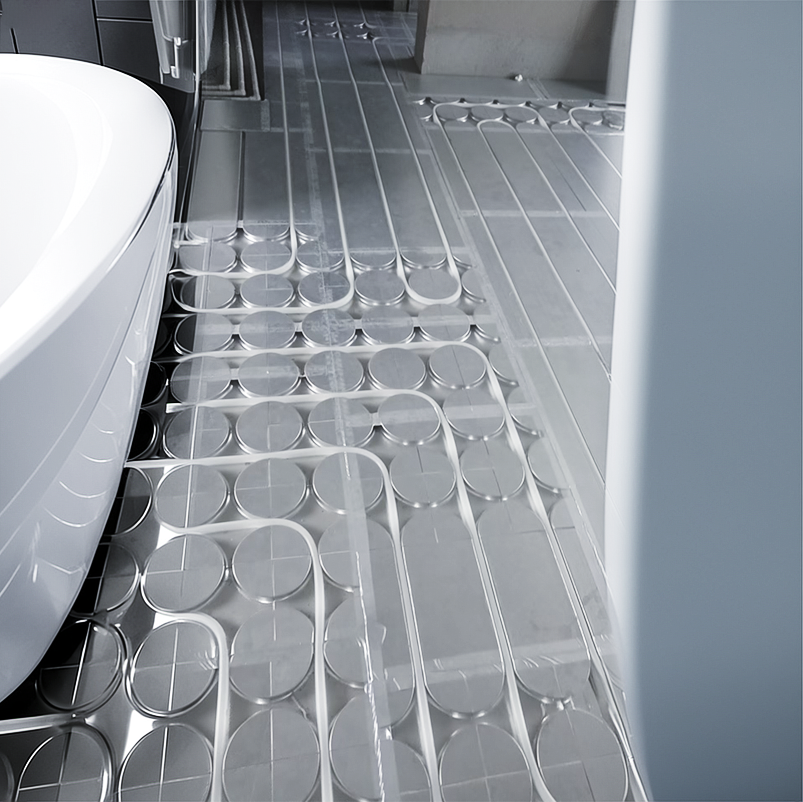

Product Introduction: XPS Embedded Floor Heating Panel
Our XPS Embedded Floor Heating Panel features high performance and long-lasting durability. Key features include:
– Dry installation, no backfill required – Save time and labor costs with a hassle-free construction process.

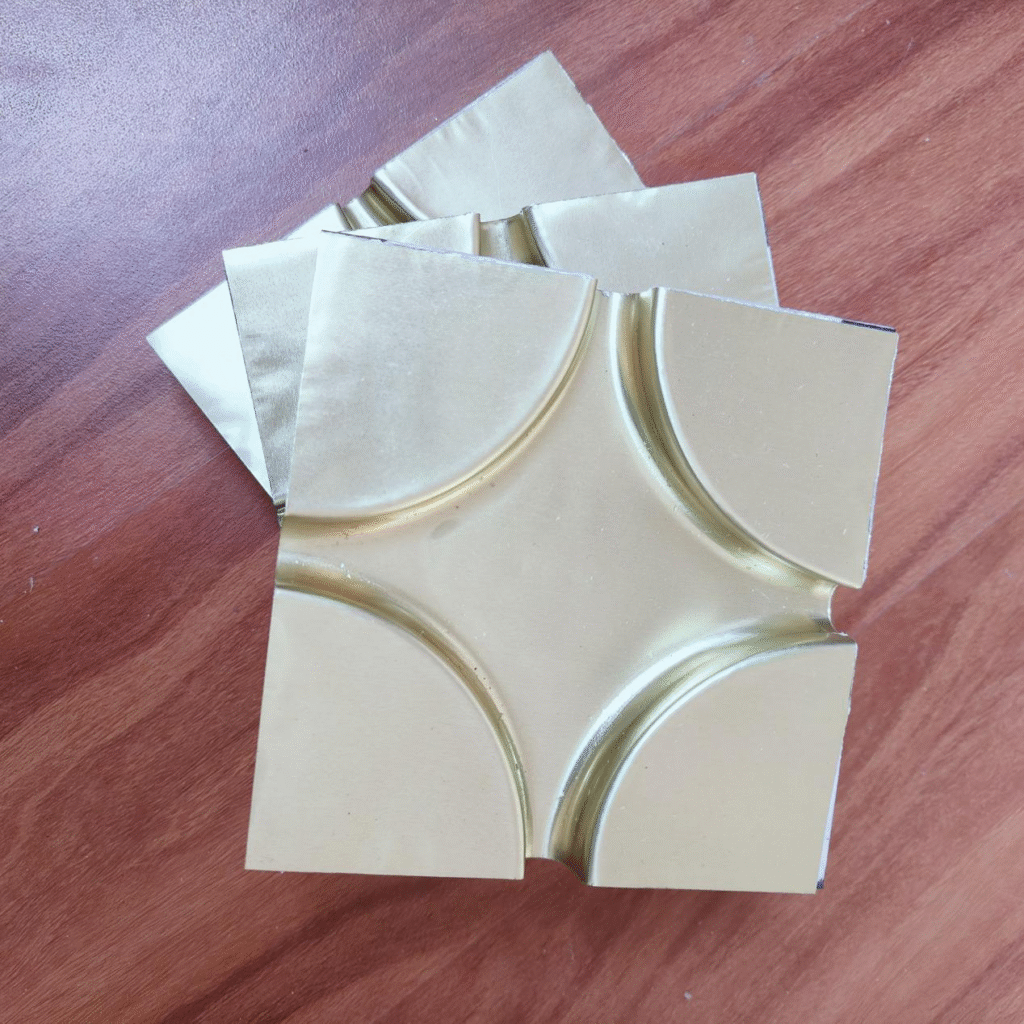

– Gold anti-corrosion aluminum thermal conductive layer (0.05-0.1mm) – Ensures excellent thermal conductivity while providing excellent corrosion resistance and an elegant gold finish.
– High-strength XPS insulation board (25-35mm, customizable) – Provides excellent thermal insulation, reduces energy loss and improves efficiency.
– Excellent thermal performance – The aluminum layer maximizes heat transfer, while the XPS board minimizes heat loss for optimal energy savings.
– Excellent corrosion resistance – Suitable for harsh environments, ensuring long-term durability in any climate and scenario.
Combining durability, efficiency and beauty, this panel is the ultimate choice for modern building needs.
| Specification parameters | |||||
| Model No. | XPS400-25-16 | XPS800-30-16 | XPS400-30-20 | XPS800-30-20 | |
| Pipe φ | 16mm | 16mm | 20mm | 20mm | |
| Product Size | 1200x600x25mm
1200x600x30mm 1200x600x35mm |
1200x600x25mm
1200x600x30mm 1200x600x35mm |
1200x600x25mm
1200x600x30mm |
1200x600x25mm
1200x600x30mm |
|
| Pipe Distance | 150/200mm | 150/200mm | 200mm | 200mm | |
| Aluminum Foil | 0.3mm | 0.3mm | 0.3mm | 0.3mm | |
| Material | XPS+aluminum plate | XPS+aluminum plate | XPS+aluminum plate | XPS+aluminum plate | |
| Compressive Strength | 400Kpa | 800Kpa | 400Kpa | 800Kpa | |
| Thermal Conductivity | 0.034 W/(m.K) | 0.034 W/(m.K) | 0.034 W/(m.K) | 0.034 W/(m.K) | |
| Color of XPS | Blue/White | Blue/White | Blue/White | Blue/White | |
| Project Solution Capability | 3D model design,Drawing design | 3D model design,Drawing design | 3D model design,Drawing design | 3D model design,Drawing design | |
| After-sale Service | Online technical support | Online technical support | Online technical support | Online technical support | |
| *All products can accept customized shapes* | |||||
Rongqi Building Materials Co., Ltd.
Innovative XPS Heating Solutions for a Warmer Future
Established in 2015, Rongqi Building Materials Co., Ltd. specializes in the R&D and production of high-performance XPS underfloor heating materials. With nearly a decade of expertise, we are committed to delivering energy-efficient, eco-friendly, and durable heating solutions for residential, commercial, and industrial applications worldwide.
Our Core Products
XPS Dry Underfloor Heating Modules
✔ Fast installation, saving time and labor costs
✔ Excellent compressive strength for long-term durability
✔ 30%+ higher energy efficiency than traditional systems
XPS Insulation Boards
✔ High compressive resistance for construction insulation
✔ Low thermal conductivity for superior heat retention
✔ Moisture-proof and mold-resistant for extended lifespan
✨ XPS Aluminum Foil Boards
✔ Reflective surface enhances heat distribution
✔ Ensures even warmth without hot spots
✔ Compatible with various heating systems
⚡ XPS Graphene-Enhanced Dry Heating Panels
✔ Graphene technology boosts thermal conductivity by 50%
✔ Rapid heating with maximum energy savings
✔ Ultra-thin design preserves ceiling height
